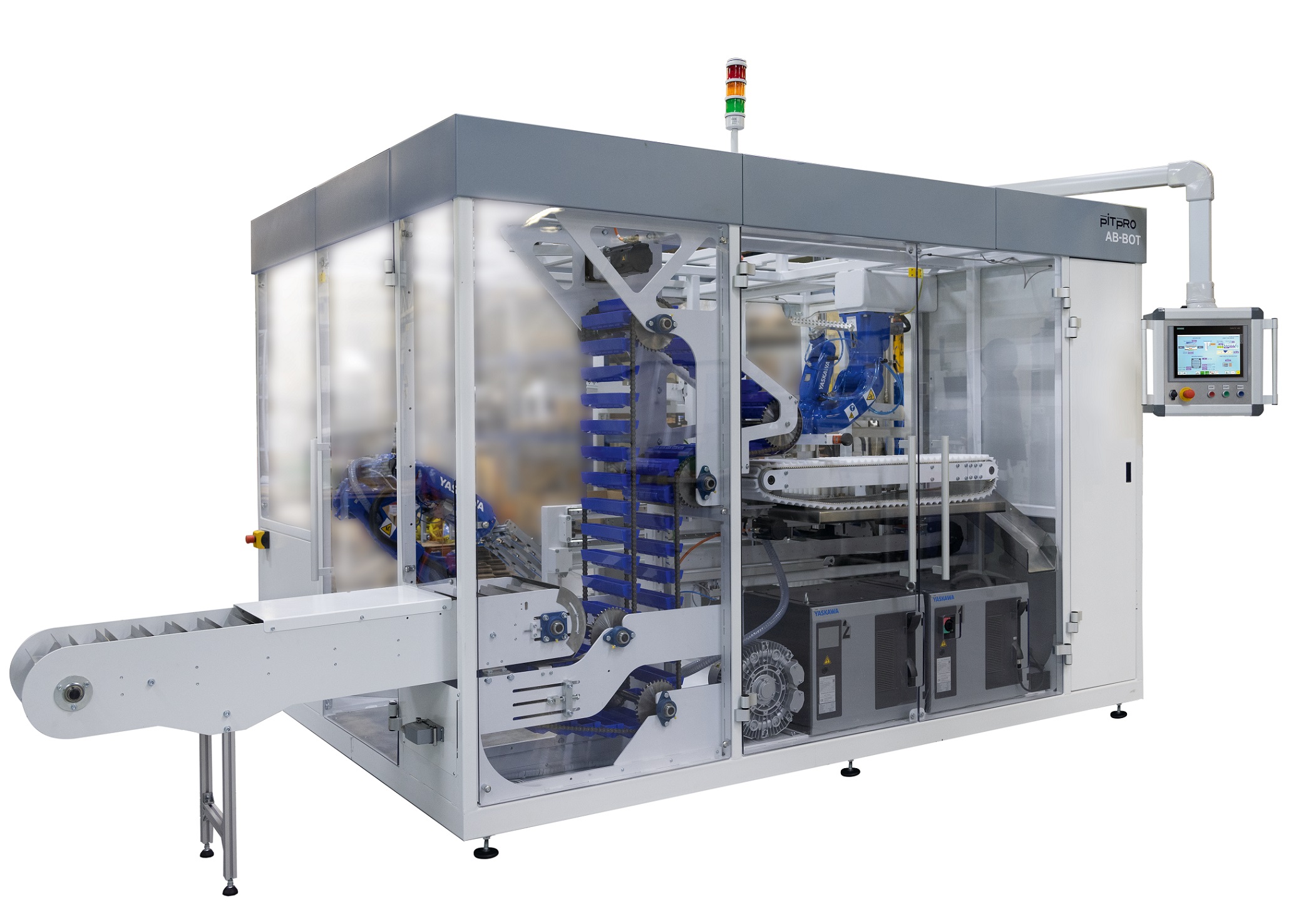

AB-BOT 240
HIGH FLEXIBLE TUBE PACKING
AB-BOT 240 is a robotic tube packing solution combining flexibility and controlled tube handling for stable high-speed production.
It ensures reliable box filling and consistent packing quality at speeds up to 350 tubes/min.
Performance,
flexibility, and ease
of operation
Performance
- Output capacity up to 350 tubes/min
- Synchronized tube transfer via compensating unit
- Clean and hygienic packing process
Flexibility
- Highly flexible robotic configuration
- Quick tooling changeover
- Suitable for laminate and extruded plastic tubes
Usability
- Intuitive HMI interface
- Easy access for cleaning and service
- Low maintenance requirements
Key technical
data at a glance
Machine
- Maximum output: 165 tubes/min
- Machine orientation: Left-hand or right-hand execution
- Dimensions (L × W × H): 3500 × 2240 × 2140 mm
- Infeed: Bucket conveyor with compensator
Tubes
- Diameter range: 19 – 63.5 mm
- Length range: 60 – 260 mm
- Suitable materials: Laminate and extruded plastic tubes
Boxes / Trays
- Tray material: Cardboard or plastic
- Minimum size (L × W × H): 300 × 300 × 55 mm
- Maximum size (L × W × H): 630 × 530 × 250 mm
- PP bag option: Available
Optional modules for
extended functionality
Material Handling
- Tube infeed direction and height adjustment
- Empty tray infeed direction change
- Full tray outfeed direction change
Quality & Control
- Vision inspection system
- Antistatic unit
Line Integration
- Compatible with various tube production machines
- PIT PRO – BOXER tray former
- PIT PRO – End-of-line solution
